| Place of Origin: | China |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Model Number: | TIF740R Series |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| Packaging Details: | 24*13*12cm cartons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Products name: | Thermal Silicone Insulation Cooling Gap Filler Pad Thermal Transfer Gap Filler Pad | Sample: | Sample Avaliable |
|---|---|---|---|
| Flam rating: | 94 -V0 | Thermal Conductivity: | 8.5 W/mK |
| Thinkness range: | 1.0mmT | Color: | Gray |
| Chứng nhận: | RoHS and UL recognized | Keywords: | Thermal Gap Filler Pad |
| Hardness: | 30±10 Shore 00 |

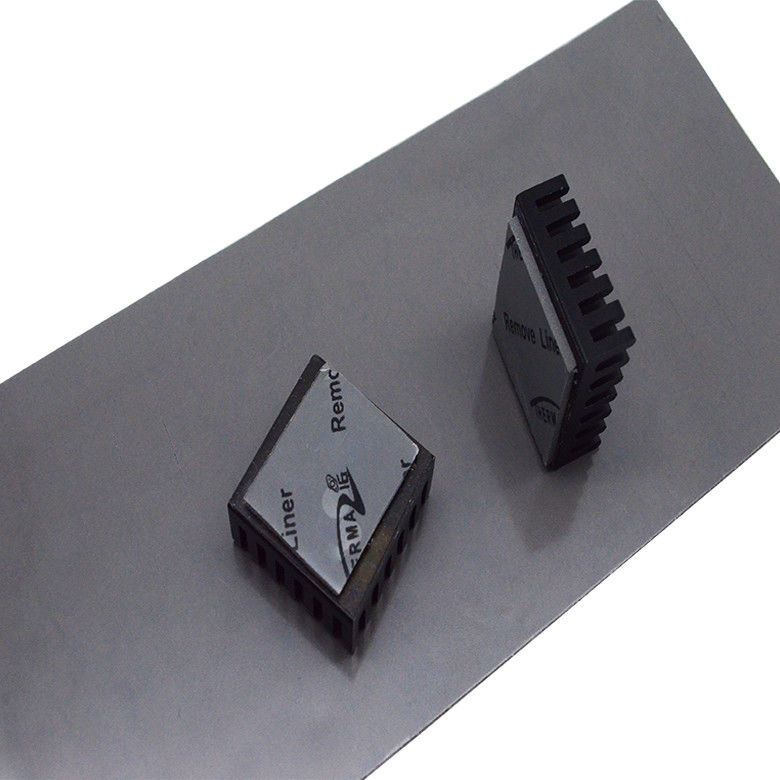

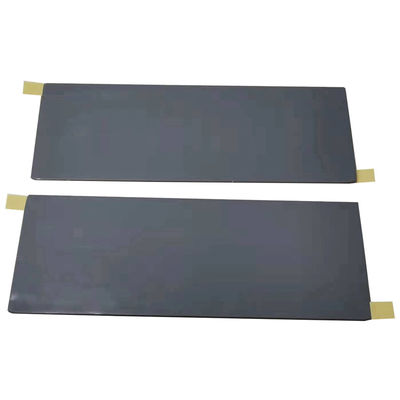

Thermal Silicone Insulation Cooling Gap Filler Pad Thermal Transfer Gap Filler Pad
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
TIFTM740R thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 8.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Applications
> Cooling components to the chassis of frame
> Set Top Box
> Car Battery & Power Supply
> Charging Pile
> LED TV/ Lighting
> Graphics Card Thermal Module
| Typical Properties of TIFTM740R Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ******* |
| Specific Gravity | 3.55g/cc | ASTM D792 |
| Thickness range | 1.0 mm | ASTM D374 |
| Hardness (thickness ≥1.0mm) | 30±10 Shore 00 | ASTM 2240 |
| Dielectric Breakdown Voltage | ≥4000 VAC | ASTM D149 |
| Operating Temp | -45 ~200℃ | ******* |
| Dielectric Constant | 5.5 MHz | ASTM D150 |
| Volume Resistivity | 1.0X1012Ohm-meter | ASTM D257 |
| Fire rating | 94-V0 | UL E331100 |
| Thermal conductivity | 8.5W/mK | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Product Thicknesses:
Product Thicknesses:0.020-inch to 0.200-inch(0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied. Please contact us for confirming.
Safe disposal method does not require special protection. The storage condition is low temperature and dry , away from openfire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
