| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | Sê-ri TiF100-66U |
| Số lượng đặt hàng tối thiểu: | 1000pcs |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | 24*13*12cm thùng |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Silicon pad nhiệt khoảng trống khoảng cách nhiệt với độ dẫn nhiệt 1,2W/mk làm việc cho máy tính xách | Từ khóa: | Silicone Thermal Pad |
|---|---|---|---|
| Chứng nhận: | RoHS and UL recognized | Phạm vi suy nghĩ: | 0,010 "(0,25mm) ~ 0,200" (5,0mm) |
| Vật mẫu: | Mẫu có sẵn | Chỉ số Flam: | 94 V0 |
| Độ cứng: | 27±5 Bờ 00 | Độ dẫn nhiệt: | 1.2W/MK |
| Màu sắc: | Màu xanh lá | Ứng dụng: | Máy tính xách tay máy tính để bàn làm mát CPU |

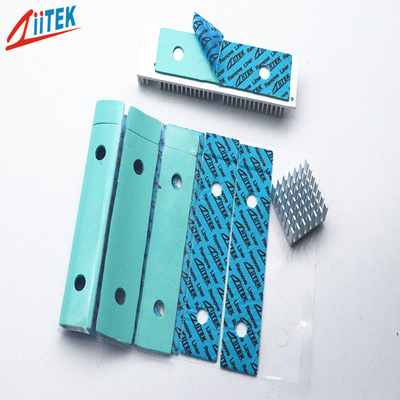

Silicone Thermal Pad Thermal Gap Filler With Thermal Conductivity 1.2W/M.K Work For Computer Laptop Desktop CPU Cooling
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Product description
TIF100-66U Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive : 1.0W/mK
> Soft and Compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thickness
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Display card
> Telecommunication hardware
> Display card
> Mass storage devices
> Automotive electronics
> Set top boxes
| Typical Properties of TIF100-66U Series | ||
| Color | Green | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ******* |
| Specific Gravity | 2.1g/cc | ASTM D297 |
| Thickness range | 0.010"(0.25mm)~0.200" (5.0mm) | ASTM C351 |
| Hardness (thickness ≥1.0mm) | 27±5 Shore 00 | ASTM 2240 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D412 |
| Operating Temp | -40 ~160℃ | ******* |
| Dielectric Constant | 4.0 MHz | ASTM D150 |
| Volume Resistivity | 1.0X1012Ohm-meter | ASTM D257 |
| Fire rating | 94-V0 | equivalent UL |
| Thermal conductivity | 1.2W/mK | ASTM D5470 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming.
Safe disposal method does not require special protection.The storage condition is low temperature and dry,
away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
