| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | TIF200-15-17E |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | 24*13*12cm thùng |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Độ mềm và khả năng lấp đầy tốt Miếng đệm khe hở dẫn nhiệt cho bộ xử lý AI điện tử ô tô | Độ dẫn nhiệt: | 1,5W/mK |
|---|---|---|---|
| Ứng dụng: | Bộ xử lý AI điện tử ô tô | Phạm vi độ dày: | 0,50~5,0mm /(0,020~0,20 inch) |
| Màu sắc: | Vàng nhạt | độ cứng: | 35 bờ 00 |
| Tỉ trọng: | 2,0 g/cm³ | Từ khóa: | Các đệm lấp lỗ dẫn nhiệt |

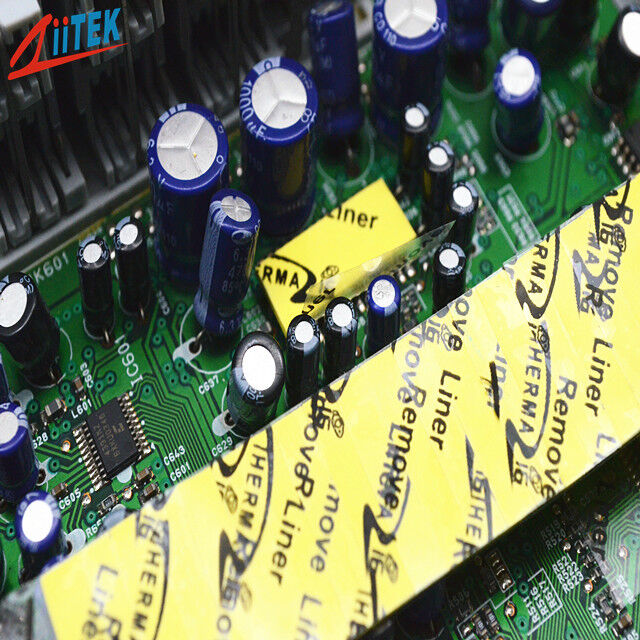

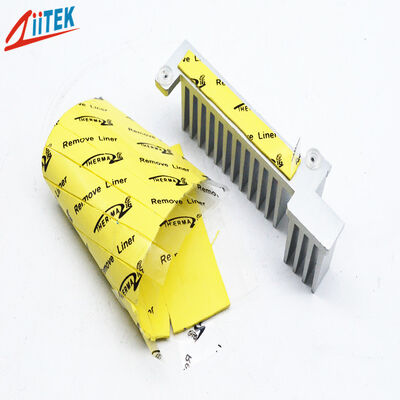

Good Softness And Fillability Thermally Conductive Gap Filler Pads For Automotive Electronics AI Processors
Products Description
TIF®200-15-27E Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation, and soft characteristics.This product not only provides excellent thermal conductivity but also ensures superior breakdown voltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces, providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation,such as power devices, new energy vehicles, and portable electronic devices.
Features:
> High insulation performance
> Good thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Puncture-resistant, tear-resistant, and scratch-resistant performance
Applications:
> Electronic Components 5G,Aerospace, AI,
> AIoT, AR/VR/MR/XR, Automotive,Consumer Devices,
> Datacom,Electric Vehicle,Electronic Products,
> Energy Storage,Industrial, Lighting Equipment,
> Medical, Military, Netcom, Panel,
> Power Electronics,Robot,Servers,
> Smart Home,Telecom,etc.
> Industrial Control
> New Energy
| Typical Properties of TIF®200-15-27E Series | ||
| Property | Value | Test method |
| Color | Light Yellow | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Density(g/cm³) | 2.0 | ASTM D792 |
| Thickness Range(inch/mm) |
0.020~0.200 / (0.50~5.0mm) |
ASTM D374 |
| Hardness | 35 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** |
| Breakdown Voltage(V/mm) | ≥8000 | ASTM D149 |
| Dielectric Constant | 6.0 MHz | ASTM D150 |
| Volume Resistivity | ＞1.0X1014 Ohm-meter | ASTM D257 |
| Thermal Conductivity(W/m.K) | 1.5 | ASTM D5470 |
| Fire rating | V-0 | UL 94 (E331100) |
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
