| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | RoHS |
| Số mô hình: | TIF050-11P |
| Số lượng đặt hàng tối thiểu: | 5kg |
|---|---|
| Giá bán: | USD 1-100/KG |
| chi tiết đóng gói: | 1kg/lon |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | TT |
| Khả năng cung cấp: | 10000kg / tháng |
| Tên: | Đặc tính điện môi vượt trội Keo dẫn nhiệt gốc silicone cho thiết bị thí nghiệm tự động bán dẫn | Ứng dụng: | Thiết bị phòng thí nghiệm tự động bán dẫn |
|---|---|---|---|
| Mật độ (g/cm³): | 3,25 | Độ dẫn nhiệt: | 5.0W/mK |
| Vật liệu: | Vật liệu silicon đầy gốm | Màu sắc: | Màu xám đậm |
| Hằng số dielectric @ 1MHz: | 7,7 | Từ khóa: | keo dẫn nhiệt |
| Điện áp đánh thủng (V/mK): | ≥6000 |

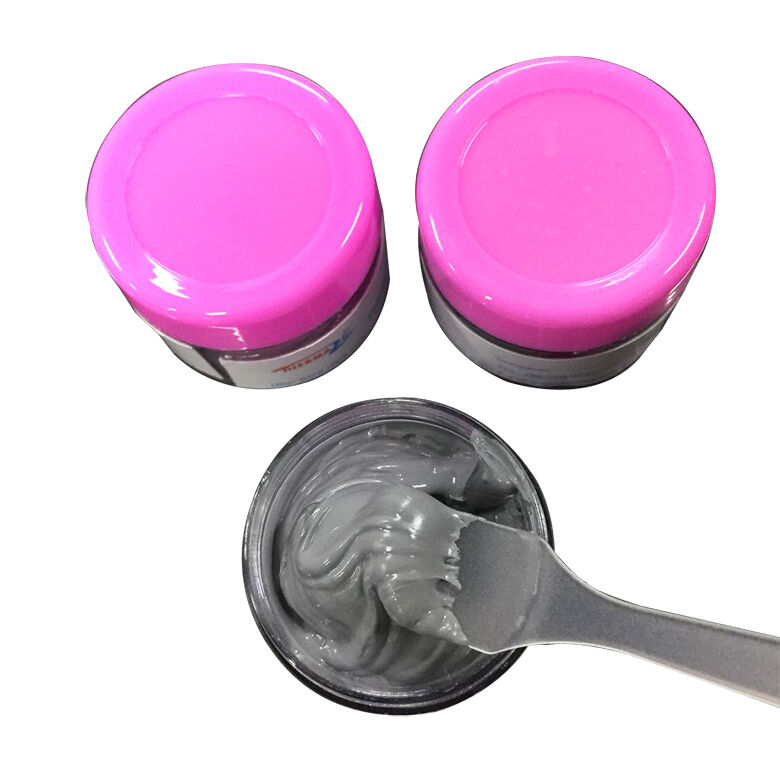

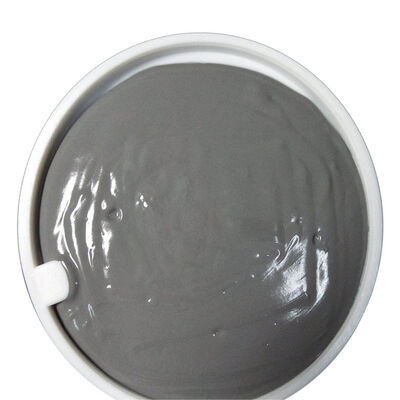

Superior Dielectric Properties Silicone-Based Thermal Conductive Paste For Semiconductor Automatic Laboratory Equipment
TIF®050-11P is a thermally conductivepaste with excellent interface thermal resistance characteristics and outstanding plasticity, capable of fully meeting the strict thermal management performance requirements of various designs; this material has extremely low hardness, possesses free-forming ability, and is easy to construct and assemble, demonstrating good stability in high-temperature environments. Its low-stress characteristics are particularly suitable for electronic devices that require high precision and high reliability, effectively reducing the mechanical stress on sensitive components during assembly and operation, ensuring the long-term stable operation of products in various application environments.
Features
> Good thermal conductivity
> Low stress, protect sensitive components.
> Strong plasticity,good stability
> Superior dielectric properties
Applications lnclude
> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices
> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic
> Laboratory equipment
| Typical Properties of TIF®050-11P Series | ||
| Property | Value | Test Method |
| Color | Dark Gray | Visual |
| Construction &Compostion | Ceramic filled silicone material | Ziitek Test Method |
| Density | 3.25 g/cm³ | ASTM D792 |
| Thermal Conductivity | 5.0W/mK | ASTM D5470 |
| Breakdown Voltage(V/mK) | ≥6000 | ASTM D149 |
| Dielectric constant @ 1MHz | 7.7 | ASTM D150 |
| Volume resistivity(Ohm·cm) | 8.0x1013 | ASTM D257 |
| Viscosity(mPa.s) | V-0 | UL94 |
Packaging Specifications
Packaging specifications: 0.5kg,1kg,2kg;
If you have any other specification requirements, please contact our company.
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Independent R&D team
