| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL |
| Số mô hình: | TIF080-11 |
| Số lượng đặt hàng tối thiểu: | 1000 ống |
|---|---|
| Giá bán: | 0.1-100USD/KG |
| chi tiết đóng gói: | 30cc/cái,50cc/chiếc |
| Thời gian giao hàng: | 3-8 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10000kg / tháng |
| Tên sản phẩm: | Độ dẫn nhiệt tuyệt vời Gel dẫn nhiệt 8.0W cho ngành viễn thông | Ứng dụng: | Ngành Công nghiệp Viễn thông |
|---|---|---|---|
| Màu sắc: | xám | Vật chất: | Vật liệu silicon đầy gốm |
| Nhiệt độ hoạt động được đề xuất (oC): | -40-200oC | Độ dẫn nhiệt: | 8,0W/mK |
| Từ khóa: | Gel dẫn nhiệt | Tỉ trọng: | 3,4 g/cm³ |

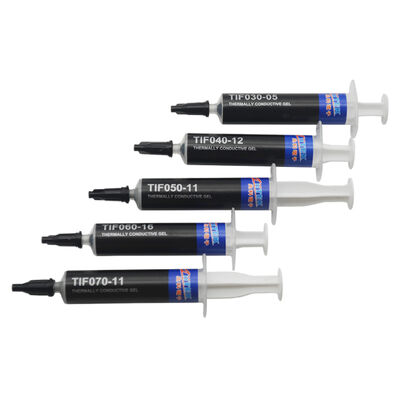

Excellent Thermal Conductivity 8.0W Thermal Conductive Gel For Telecom Industry
TIF®080-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, it has a higher viscosity, which efectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment.
Feature
> Excellent thermal conductivity: 8.0W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability
Application
> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controler
> Telecom industry
> Semiconductor automatic laboratory equipment
| TIF®080-11 Typical Properties | ||
| Property | Value | Test method |
| Color | Gray | Visual |
| Construction & Composition | Ceramic filled silicon material | ***** |
| Flow Rate(g/min) | 40 | Ziitek Test Methbod |
| (30cc syringe/ 2.5mm or rifice/90 psi) | ||
| Density(g/cm³) | 3.4 | ASTM D792 |
| Thermal conductivity(W/mK) | 8.0 | ASTM D5470 |
| Thermal Impedance @10Psi(℃-in²/W) | 0.065 | ASTM D5470 |
| Thermal Impedance @50Psi(℃-in²/W) | 0.060 | ASTM D5470 |
| Recommended Operating temp | -40~200℃ | ***** |
| Breakdown Voltage(V/mm) | ≥4000 | ASTM D149 |
| Bond line Thickness (mm) | 0.2 | Ziitek Test Method |
| Shelf life | 12 months | **** |
| Flame Rating | V-0 | UL 94 |

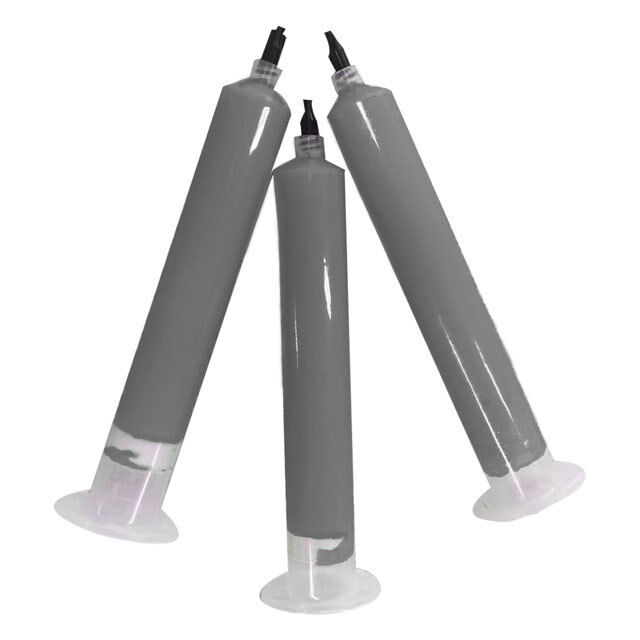

Packing details
30 cc/pc, 50cc/pcs, 300 cc/pc ,
Custom packaging available for automation use ,Please contact us for confirming.
If you want to know our thermal products, please visit our website.
Company Profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Q&A
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
