| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | TIF100-15-11S |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Chất làm đầy khoảng cách dựa trên silicon có độ bền điện môi cao để làm mát thiết bị điện tử tiêu dù | Màu sắc: | Màu xám đậm |
|---|---|---|---|
| Hằng số điện môi: | 4,5 MHz | Từ khóa: | Chất độn khoảng trống |
| Ứng dụng: | Điện tử tiêu dùng làm mát | độ dày: | 0,25-5,0mmT(0,010"~0,20") |
| Điện áp đánh thủng(V/mm): | ≥5500 | Xếp hạng lửa: | 94 V0 |
| Độ dẫn nhiệt: | 1,5W/mK |

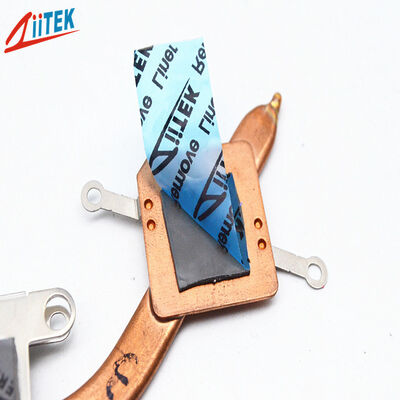

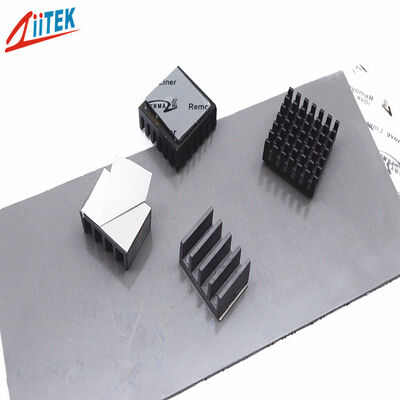

High Dielectric Strength Silicone-Based Gap Pad Filler For Consumer Electronics Cooling
The TIF®100-15-11S Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Features
> Good thermal conductive: 1.5W/mK
> Available in varies thicknesses
> Broad range of hardnesses available
> Outstanding thermal performance
> Easy release construction
> Electrically isolating
> High durability
Applications
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
| Typical Properties of TIF®100-15-11S Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.3 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.5) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 1.5 | ASTM D5470 | |
| 1.5 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Independent R&D team
