| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | TIF100-18-11E |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Sản phẩm AME: | Kích thước tùy chỉnh Độ dày Tấm tản nhiệt 1,8W/MK Vật liệu quản lý nhiệt cho bộ xử lý AI Máy chủ AI | Từ khóa: | Tấm nhiệt silicon |
|---|---|---|---|
| độ cứng: | 65/35 Bờ 00 | Trọng lượng riêng: | 2,5g/cm³ |
| Điện áp đánh thủng điện môi: | >5500VAC | Độ dẫn nhiệt: | 1,8W/mK |
| Màu sắc: | Màu xám đậm | độ dày: | 0,01 ~ 0,2 inch(0,25 ~ 5,0 mmT) |
| Ứng dụng: | Bộ xử lý AI Máy chủ AI |

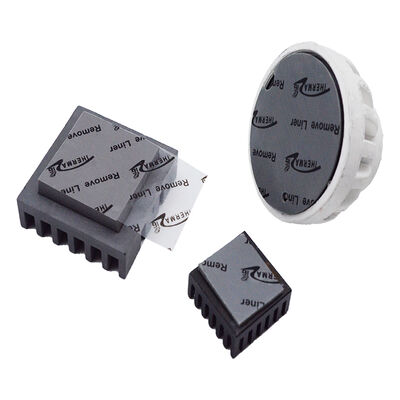

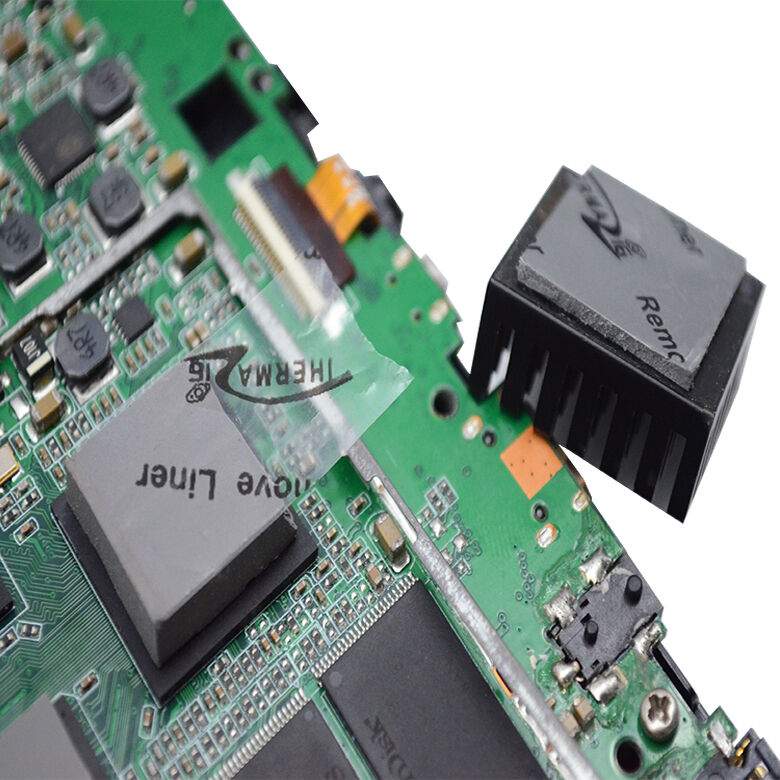

Custom Size Thicknesses Thermal Pad 1.8W/MK Thermal Management Materials For AI Processors AI Servers
The TIF®100-18-11E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features:
> Good thermal conductivty:1.8W/mK
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options
Applications:
> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps
> Display card
> Mainboard/mother board
| Typical Properties of TIF®100-18-11E Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.5 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 1.8 | ASTM D5470 | |
| 1.8 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Product Specifications
Standard Thickness:0.010" (0.25 mm)-0.20" (5.00 mm) with increments of 0.01" (0.25 mm).
Standard Size: 16"×16" (406 mmX406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
