| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | TIF100-15-25E |
| Số lượng đặt hàng tối thiểu: | 1000 CÁI |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Tấm cách nhiệt tấm dẫn nhiệt/nhiệt Silica 1,5W/MK Silica màu hồng để làm mát card đồ họa Cpu/Gpu | Phạm vi độ dày: | 0,010 "(0,25mm) ~ 0,200" (5,0mm) |
|---|---|---|---|
| Ứng dụng: | Làm mát card đồ họa Cpu/Gpu | Độ dẫn nhiệt: | 1,5W/mK |
| Màu sắc: | HỒNG | Hằng số dielectric @ 1MHz: | 4.7MHz |
| Điện áp phân hủy (V/mm): | ≥5500 VAC | Đánh giá ngọn lửa: | 94 V-0 |
| Từ khóa: | Tấm dẫn nhiệt |

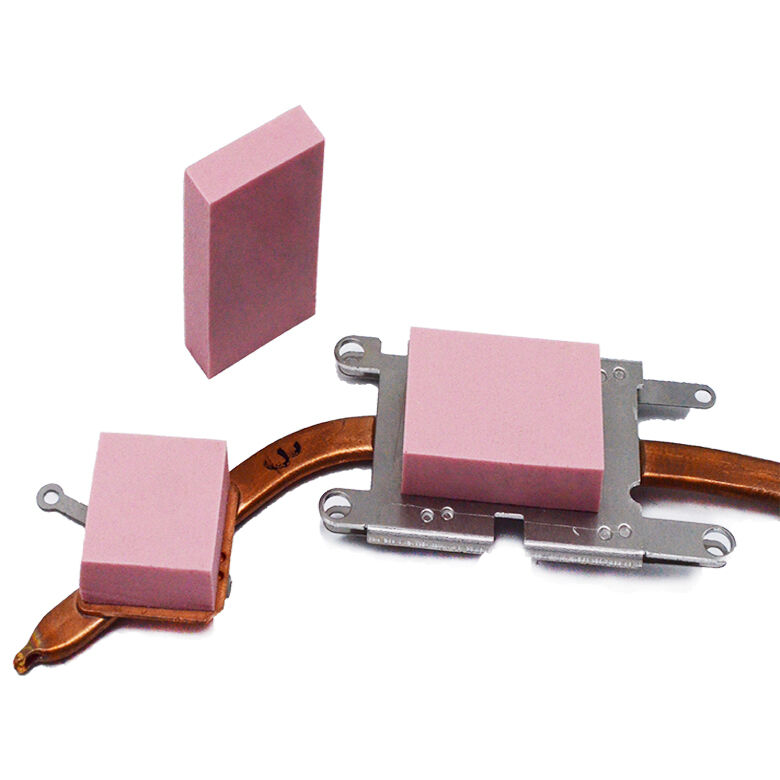

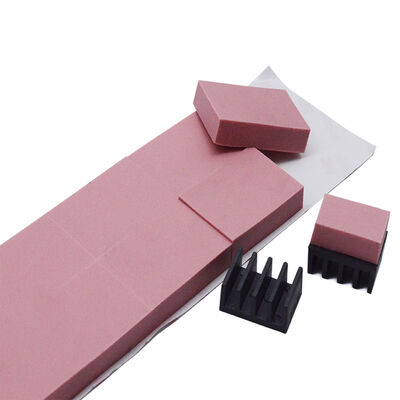

Pink 1.5W/MK Silica Thermal/Heat Conductive Pads Insulation Sheet For Cpu/Gpu Graphics Card Cooling
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIF®100-15-25E thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
Applications
> LED TV / LED Lit Lamps
> Automotive engine control units
> SAD-DC Power Adapters
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Micro heat pipe thermal solutions
> Memory Modules
> Routers
> Telecommunication hardware
> Mainboard/mother board
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
| Typical Properties of TIF®100-15-25E Series | |||
| Property | Value | Test method | |
| Color | Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.3 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.7 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
| 1.5 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
