| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL |
| Số mô hình: | TIF100L 2050-06 |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24 * 13 * 12cm |
| Thời gian giao hàng: | 3-8 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 100000 chiếc / tháng |
| Tên sản phẩm: | Độ biến động cực thấp của miếng đệm khe hở dẫn nhiệt silicone Siloxane cho màn hình điều khiển trung | Sự thi công: | Chất đàn hồi silicon chứa đầy gốm |
|---|---|---|---|
| độ cứng: | 65/50 Bờ 00 | Màu sắc: | trắng |
| Ứng dụng: | Màn hình điều khiển trung tâm | dẫn nhiệt: | 2.0 W/mK |
| độ dày: | 0,010 "(0,25mm) ~ 0,200" (5,0mm) | Tỉ trọng: | 2,9g/cm³ |
| Từ khóa: | tấm đệm khe hở nhiệt |

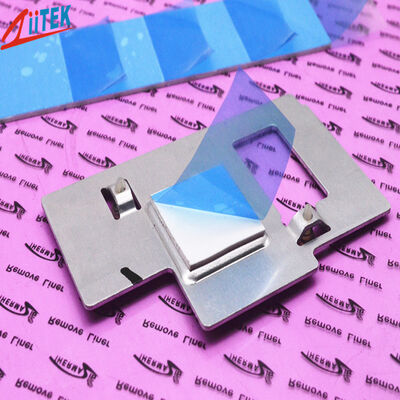

Ultra Low Volatility Of Siloxane Silicone Thermally Conductive Gap Filler Pads For Central Control Screen
Company Profile
Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

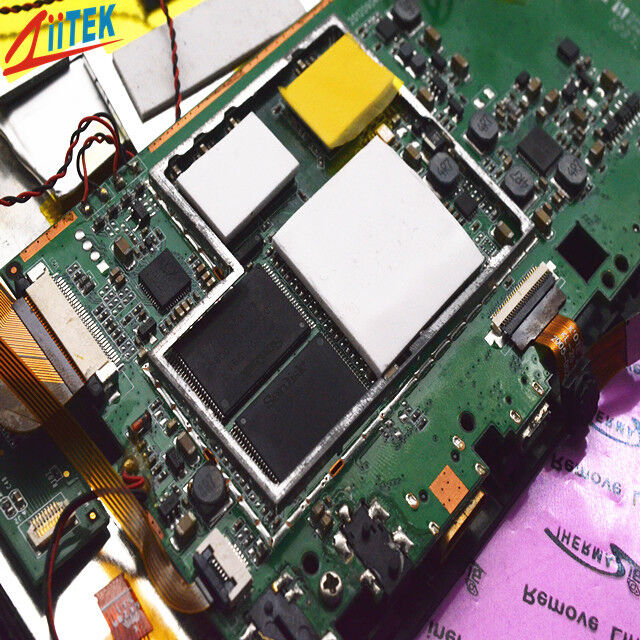

The TIF®100L 2050-06 eries is a thermal pad with ultra-lowsiliconoxygen volatilization, designed specifically for optical and high-precision applications. Its soft and elastic material can fill the uneven gaps between heating elements and heat sinks or metal bases, limprove thermal conductivity efficiency,and effectively extend the life of electronic components. The silicone structure filled with ceramics not only has good thermal conductivity, but also has extremely low volatility of low molecular weight siloxanes, which can significantly reduce the risk of internal contamination in optical devices.
>Embedded Motherboard
>Industrial visual inspection equipment
>Graphics card cooling module
>Charging pile power module
>Central control screen
| Typical Properties of TIF®100L 2050-06 Series | |||
| Property | Value | Test method | |
| Color | White | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.9 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 50 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 7.0 | ASTM D150 | |
| Volume Resistivity(Ohm-meter) | ＞1.0X1012 | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity(W/m-K) | 2.0 | ASTM D5470 | |
| 2.0 | ISO22007 | ||
Product Specifications
Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm),with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mmx406 mm)
The TIF® series is available in custom shapes andvarious forms.
For other thicknesses or more information, please contact us.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
