| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | RoHS |
| Số mô hình: | TIC800H |
| Tài liệu: | TIC800H_Data Sheet .pdf |
| Số lượng đặt hàng tối thiểu: | 1000 CÁI |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24 * 13 * 12cm |
| Thời gian giao hàng: | 3-6 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Khả năng tương thích quy trình tốt Vật liệu thay đổi pha dẫn nhiệt 7,5W/mK cho bộ xử lý tải trọng | Từ khóa: | Vật liệu thay đổi pha |
|---|---|---|---|
| ứng dụng: | Bộ xử lý tải trọng | Tỉ trọng: | 2.7 G/cm3 |
| Độ dẫn nhiệt: | 7,5W/MK | Nhiệt độ làm mềm thay đổi pha (oC): | 50℃~60℃ |
| Nhiệt độ hoạt động được đề xuất (oC): | -40~125℃ | Màu sắc: | xám |

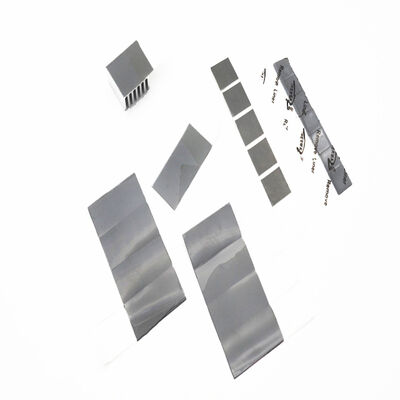

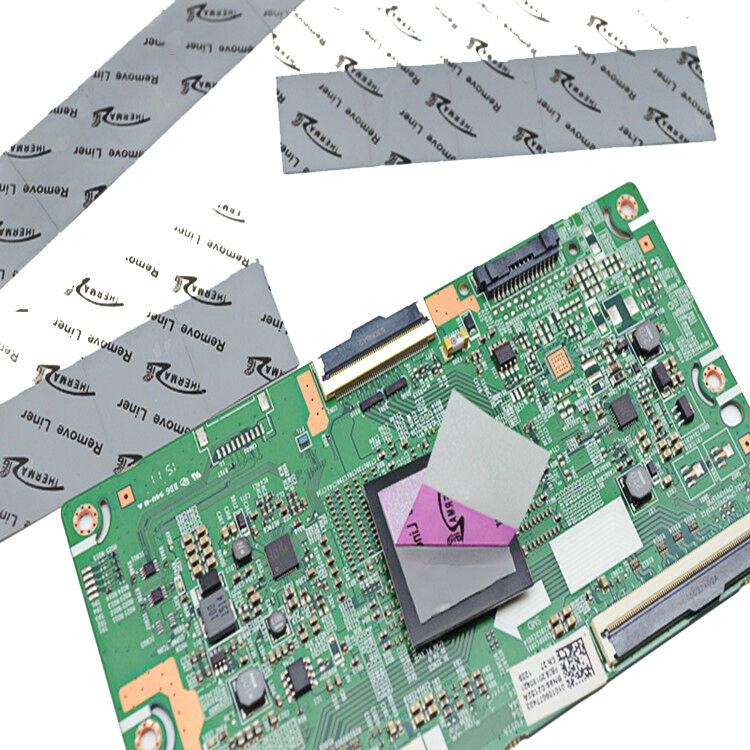

Good Process Compatibility 7.5W/mK Thermal Conductive Phase Change Material For Payload Processor
Company profile
Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.
Products decsription
The TIC®800H Series is an ultra-high thermal conductivity phase change material with a unique grain orientation structure. This structure achieves directional optimization of the heat flow path through micro ordered arrangement, significantly doubling the macroscopic thermal conductivity efficiency. When the temperature exceeds the phase transition point of 50℃, the material can soften and infiltrate the interface, filling micro irregular gaps, and ultimately forming a heat conduction channel with extremely low thermal resistance at the contact surface, improving the eficiency of the heat dissipation system.
Features
> Excellent thermal conductivity
> Good process compatibility
> Soft surface and self adhesive
> Low steady-state thermal resistance
Applications
> Power conversion equipment
> Payload processor
> Server CPU
> Game graphics card GPU chip heat dissipation
| Typical Properties of TIC®800H Series | ||||
| Product Name | TIC®808H | TIC®810H | TIC®812H | Testing standards |
| Color | Gray | Visual | ||
|
Thickness(inch/mm) |
0.008" | 0.010" | 0.012" | ASTM D374 |
| (0.20mm) | (0.25mm) | (0.30mm) | ||
| Density(g/cm³) | 2.7 | ASTM D792 | ||
| Recommended Operating Temperature (℃) |
-40～125 | - | ||
| Phase Change Softening Temperature(℃) | 50~60 | - | ||
| Thermal conductivity | 7.5 W/mK | ASTM D5470 | ||
|
Thermal lmpedance (℃-in²/W)@10 psi |
0.018 | 0.019 | 0.021 | ASTM D5470 |
|
Thermal lmpedance (℃-in²/W)@50 psi |
0.013 | 0.014 | 0.015 | ASTM D5470 |
Product Specifications
Standard Thickness:0.008" (0.20 mm),0.010" (0.25 mm),0.012" (0.30 mm)
Standard Size: 10" x 16" (254 mm x 406 mm)
TIC®series can be molded into different shapes to provide. If you need different thicknesses or would like to learn more about thermal conductive materials, please contact our company.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
