| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL and RoHs |
| Số mô hình: | TIS100-08-01F |
| Tài liệu: | TIS100-08-01F_Data Sheet.pdf |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24 * 13 * 12cm |
| Thời gian giao hàng: | 3-8 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 100000 chiếc / tháng |
| Tên sản phẩm: | Vòng đệm cách nhiệt 0,8W/mK được thiết kế để cung cấp độ dẫn nhiệt 0,8W/mK để tản nhiệt trong các th | dẫn nhiệt: | 0,8W/mk |
|---|---|---|---|
| độ cứng: | 60 bờ 00 | vật mẫu: | Mẫu miễn phí |
| Màu sắc: | Đen | Độ dày (inch/mm): | 0,012/0,30 |
| Tỉ trọng: | 1,8g/cm³ | Từ khóa: | Gioăng cách nhiệt dẫn nhiệt |
| Sự thi công: | Chất đàn hồi silicon chứa đầy gốm | Ứng dụng: | Tản nhiệt trong thiết bị điện tử |
Products description

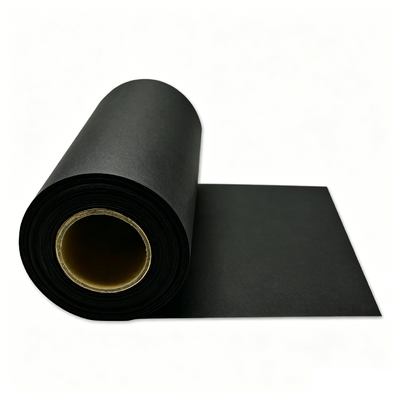

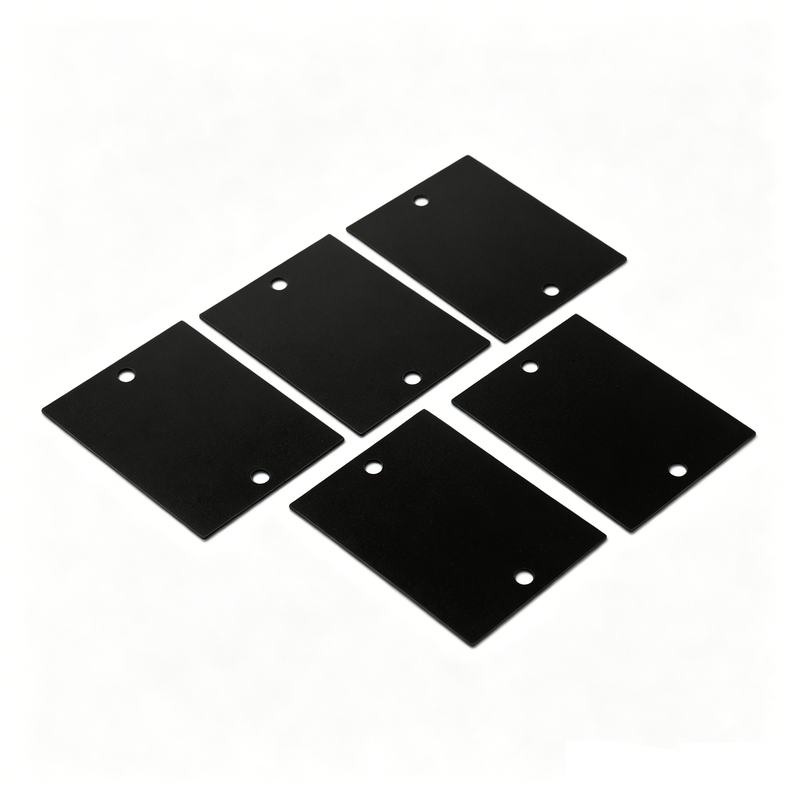

The TIS®100-08-01F Series is a high-efficiency thermal conductive insulating product. lt incorporates insulating silicone substrates into thermally conductive materials to achieve both insulation and heat conduction. At the same time, the glass fibers provide excellent tear and puncture resistance. The product is non-toxic and environmentally friendly, has flame-retardant properties, and is mainly used for isolating power supplies and heat sinks.
| Typical Properties of TIS®100-08-01F Series | |||
| Product Model | TIS112-08-01F | TIS120-08-01F | Test method |
| Color | Black | Visual | |
| Construction | Ceramic filled silicone elastomer/ Fiberglass | ****** | |
| Density(g/cm³) | 1.8 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.012 | 0.020 | ASTM D374 |
| 0.30 | 0.50 | ||
| Hardness (Shore 00) | 60 | ASTM 2240 | |
| Tensile Strength (Mpa) | 21 | ASTM D412 | |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5000 | ASTM D149 | |
| Dielectric Constant @1MHz | 6.0 | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 0.8 W/m-K | ASTM D5470 | |
| 0.8 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.012" (0.30 mm),0.020" (0.50 mm)
Standard Size: 12"X160" (304 mmX48.7M)
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
