| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | Dòng TIF100-10F |
| Tài liệu: | TIF100-16-38UF_Data Sheet.pdf |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Tấm tản nhiệt silicon bền mang lại khả năng dẫn nhiệt và cách điện tuyệt vời cho các linh kiện điện | Từ khóa: | Pad dẫn nhiệt |
|---|---|---|---|
| Phạm vi suy nghĩ: | 0,010 "(0,25mm) ~ 0,200" (5,0mm) | Vật mẫu: | Mẫu có sẵn |
| Đánh giá Flam: | 94 V0 | độ cứng: | 75 Bờ 00 |
| Độ dẫn nhiệt: | 1,6W/mK | Màu sắc: | Màu đỏ đậm |
| Chứng nhận: | RoHS and UL recognized |

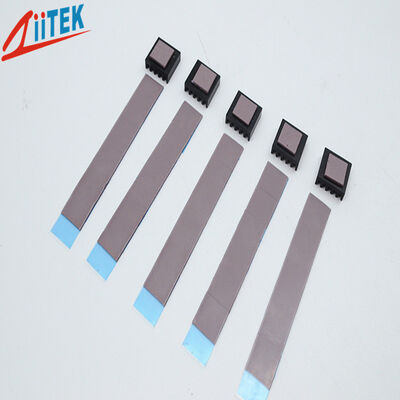

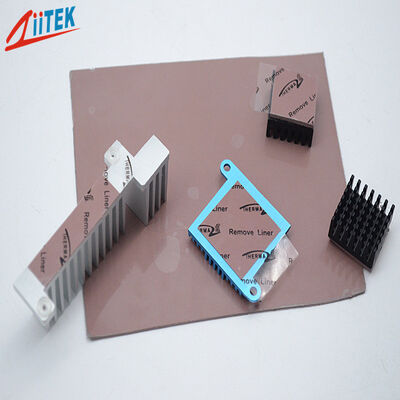

TIF®100-16-38UF Series is a structurally supportive thermal pad designed to provide excellent heat dissipation while ensuring structural support and durability. It reliably fills interface gaps, transfers heat efficiently, and offers mechanical support for stacked components while resisting compressive deformation. This product is ideal for applications requiring a balance between heat dissipation, insulation, and mechanical stability.
| Property | Value | Test Method |
|---|---|---|
| Color | Deep red | Visual |
| Construction | Ceramic filled silicone elastomer | - |
| Density (g/cm³) | 2.1 | ASTM D792 |
| Thickness Range | 0.010"~0.020" | 0.030"~0.200" 0.25~0.50mm | 0.75~5.0mm |
ASTM D374 |
| Hardness (Shore 00) | 75 | ASTM 2240 |
| Operating Temperature | -40 to 200℃ | - |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @ 1MHz | 5.5 | ASTM D150 |
| Volume Resistivity | ＞1.0×10¹² Ohm-meter | ASTM D257 |
| Flame Rating | V-0 | UL 94 (E331100) |
| Thermal Conductivity | 1.6 W/m-K | ASTM D5470 / ISO22007 |
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010 (0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)

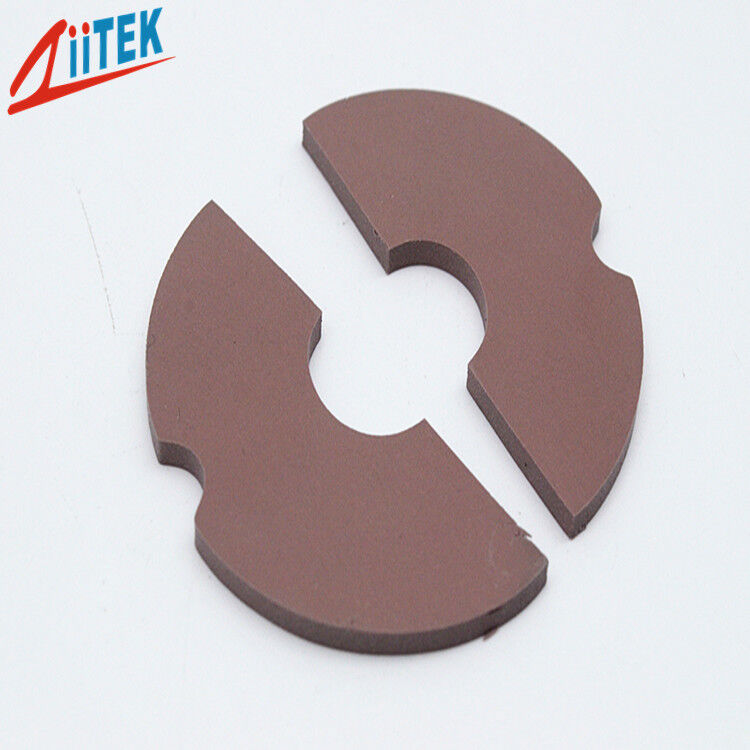

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging: Protected with PET film or foam, paper card separation between layers, export carton packaging, customizable to customer requirements.
Lead Time: For quantities of 5000 pieces, delivery time is negotiable.
Are you a trading company or manufacturer?
We are a manufacturer based in China.
Q: Do you accept custom orders?
A: Yes, we welcome custom orders. Our custom elements include dimension, shape, color, and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order, please provide a drawing or leave your custom order information.
Q: How much are the pads?
A: Price depends on your size, thickness, quantity, and other requirements such as adhesive options. Please provide these factors so we can give you an exact price.
