| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | Sê -ri TiF7140RUS |
| Số lượng đặt hàng tối thiểu: | 1000pcs |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 chiếc / tháng |
| Tên sản phẩm: | Pin nhiệt nhiệt 8,5W/MKW 3,5 mm cách điện silicone silicon | Phạm vi suy nghĩ: | 3,5mmT |
|---|---|---|---|
| Khả năng dẫn nhiệt: | 8,5W/mk | Từ khóa: | Bộ đệm nhiệt pin |
| Đặc điểm: | Có sẵn trong các tùy chọn suy nghĩ khác nhau | Chỉ số Flam: | 94 V-0 |
| Độ cứng: | 20 bờ biển 00 | Màu sắc: | màu xám |
| Ứng dụng: | Máy tính xách tay, điện và làm mát pin | ||
| Làm nổi bật: | 3.5 mm Thermal Pad,8.5W/MKW Thermal Pad,Silicone Pad Thermal Pad |
||

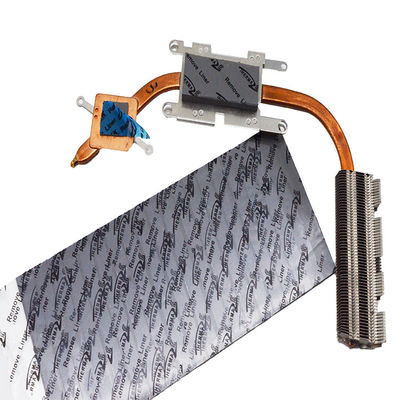

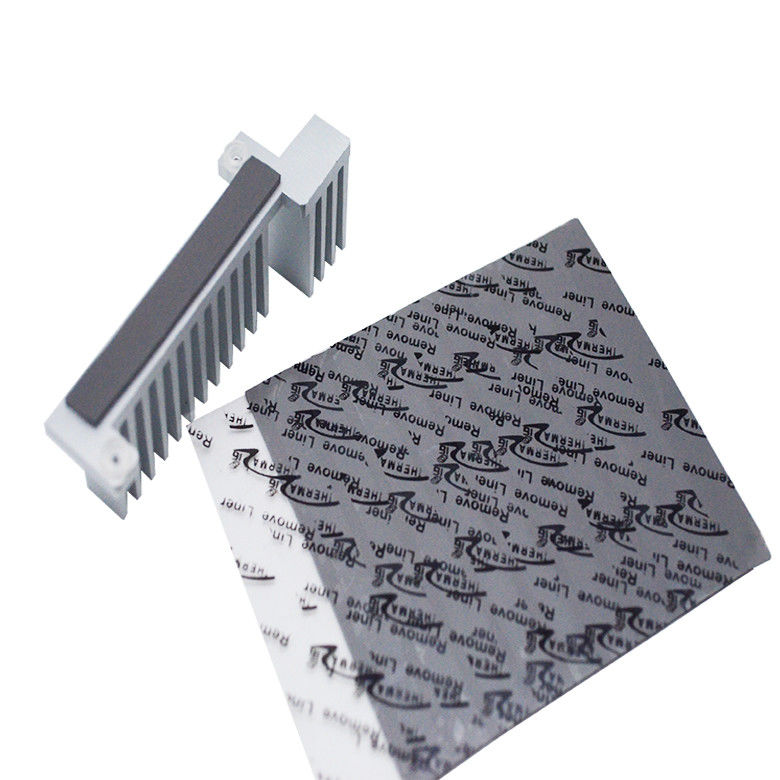

Battery Thermal Pad 8.5W/MKW 3.5 mm Thermal Insulator Silicone Pad
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
TIF®7140RUS Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features:
> Excellent thermal conductivity 8.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
| Typical Properties of TIF®7140RUS Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone | ***** |
| Specific Gravity | 3.2 g/cc | ASTM D792 |
| Thickness | 3.5mm | ASTM D374 |
| Hardness | 20 (Shore 00) | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥3500 VAC | ASTM D149 |
| Dielectric Constant | 5.1~6.1 MHz | ASTM D150 |
| Volume Resistivity(Ohm-cm) | ＞1.0*1.012 | ASTM D257 |
| Fire rating | 94 V0 | UL (E331100) |
| Thermal conductivity | 8.5W/m-K | ASTM D5470 |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
