| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | Dòng TIF100-05UF |
| Số lượng đặt hàng tối thiểu: | 1000pcs |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | 24*13*12cm thùng |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Tấm đệm silicon dẫn nhiệt tùy chỉnh Tấm sưởi silicon dẫn nhiệt để lấp đầy khoảng trống | Độ dẫn nhiệt: | 1,5W/mK |
|---|---|---|---|
| Vật mẫu: | Mẫu miễn phí | Màu sắc: | Màu xanh da trời |
| Phạm vi độ dày: | 0,020 "~ 0,200" (0,5mm ~ 5,0mm) | Xếp hạng lửa: | 94 V0 |
| Hằng số điện môi: | 3,9 MHz | Từ khóa: | Bộ đệm Silicon dẫn nhiệt |
| Điện áp phân hủy điện môi: | > 5500 VAC | Ứng dụng: | cho các sản phẩm điện tử lấp đầy khoảng trống |

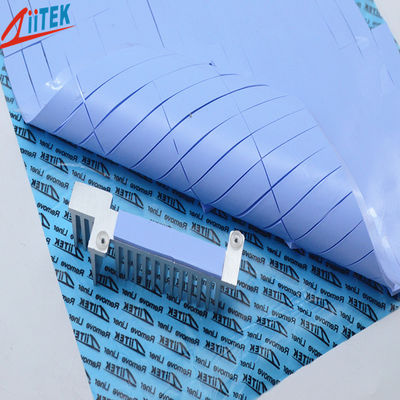

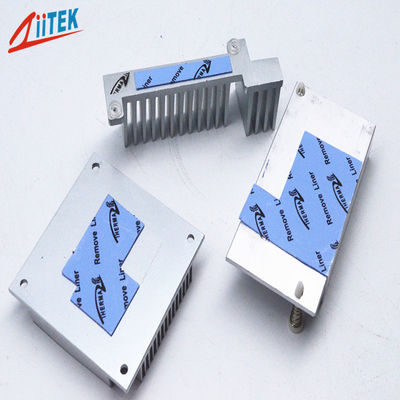

Customized Thermal Conductive Silicon Pad Thermal Conductive Silicone Thermal Heating Pad For Filling Gaps
Company Profile
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
Ziitek TIF®100-05UF Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Easy release construction
> Electrically isolating
> High durability
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp
| Typical Properties of TIF®100-05UF Series | |||
| Property | Value | Test method | |
| Color | Blue | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 | |
| Specific Gravity | 2.2g/cc | ASTM D297 | |
| Hardness | 75 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 3.9 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
