| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | Dòng TIF100-06S |
| Số lượng đặt hàng tối thiểu: | 1000pcs |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | 24*13*12cm thùng |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Tấm đệm silicon nhiệt cách nhiệt cao Chất làm đầy khoảng cách làm mát cho chất bán dẫn, thiết bị y t | Từ khóa: | Bàn đệm silicone nhiệt |
|---|---|---|---|
| Ứng dụng: | Chất bán dẫn, Thiết bị y tế, Máy căn chỉnh mặt nạ | Vật mẫu: | Mẫu miễn phí |
| Độ dẫn nhiệt: | 1,5W/mK | Phạm vi độ dày: | 0,020 "~ 0,200" (0,5mm ~ 5,0mm) |
| Màu sắc: | Trắng | Xếp hạng lửa: | 94 V0 |
| Điện áp phân hủy điện môi: | > 5500 VAC | Hằng số điện môi: | 4,5 MHz |

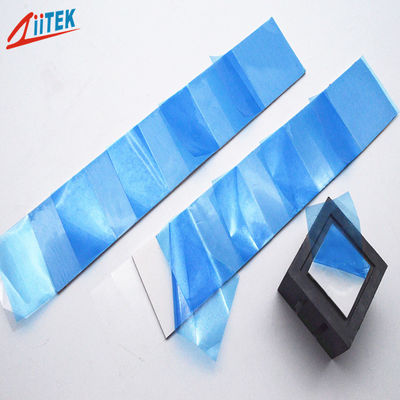

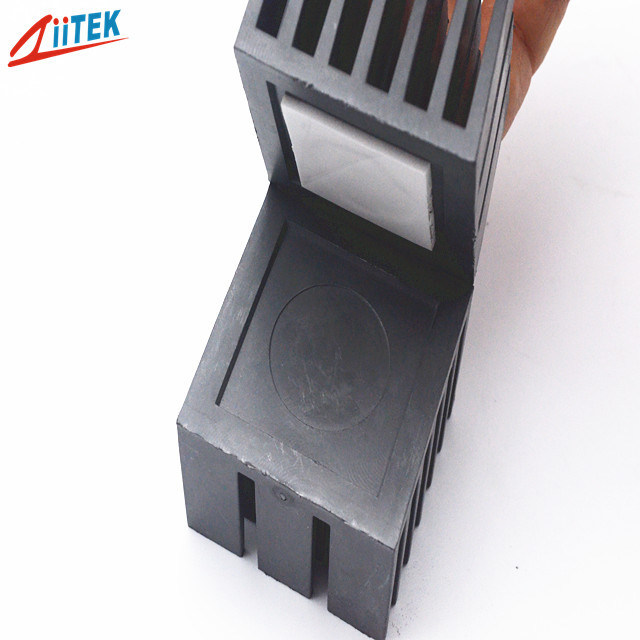

High Conductive Insulation Thermal Silicone Pad Cooling Gap Filler For Semiconductor, Medical Equipment, Mask Aligner
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Ziitek TIF®100-06S Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
| Typical Properties of TIF®100-06S Series | |||
| Property | Value | Test method | |
| Color | White | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 | |
| Specific Gravity | 2.3g/cc | ASTM D297 | |
| Hardness | 45 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Outgassing | 0.35% | ASTM E595 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
