| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | ROHS |
| Số mô hình: | Z-Bọt800-10SC |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10USD/pcs |
| chi tiết đóng gói: | Thùng 24 * 13 * 12cm |
| Thời gian giao hàng: | 3-8 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10000000pcs/tháng |
| Tên sản phẩm: | Chịu nhiệt độ cao Vật liệu tạo bọt silicone hấp thụ âm thanh tuyệt vời cho xe điện | Từ khóa: | Tạo bọt silicone |
|---|---|---|---|
| Màu sắc: | xám | Mật độ (g/m³): | 0,37 |
| Bộ nén @100°C（%): | ＜5.0 | Cấu trúc & Thành phần: | Cao su silicon |
| Ứng dụng: | Xe điện | Phạm vi nhiệt độ(°C): | -55~200 |
| Độ bền kéo (MPA): | ≥0,3 |

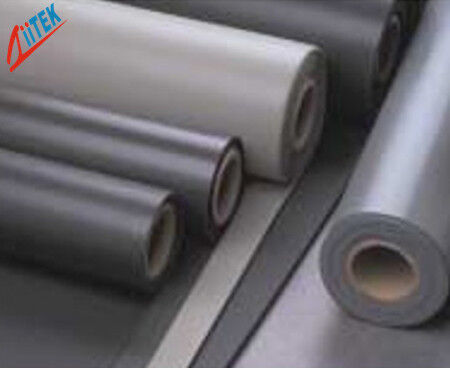

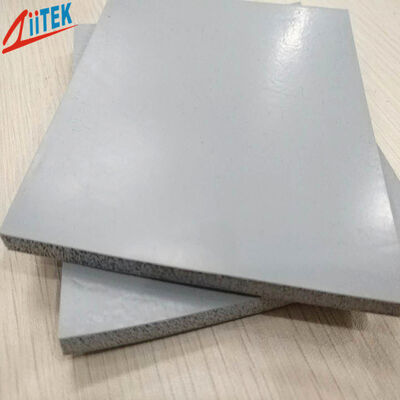

High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle
Company profile
Products description
Z-Foam®800-10SC series foamed silicone is a foam material formed by the foaming of poly siloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weather ability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing, vibration damping, cushioning, sound insulation.
Features
> Resistant to mechanical fatigue
> Resistant to ozone and ultraviolet rays
> High oxygen index, low smoke,low toxicity
> Excellent performance under extreme temperatures
> Excellent resistance to compression set and creep
Application
> Communication Equipment
> Smart Devices
> Cables and Optical Fibers
> Airplanes, High-Speed Trains,Automobiles
> Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-10SC Series | ||
| Properties | Value | Test method |
| Color | Gray | Visual |
| Structure & Component | Silicone rubber | ****** |
| Density (g/cm3) | 0.37 | ASTM D1056 |
| Compression Set @100℃(%)) | ＜5.0 | ASTM D1056 |
| Tensile Strength (MPa) | ≥0.3 | ASTM D412 |
| Elongation At Break (%) | ≥90 | ASTM D570 |
| Water Absorption (%) | ≤5.0 | ASTM D412 |
| Breakdown Voltage (kV/mm) | ≥2.5 | ASTM D149 |
| Volume Resistivity (Ω·cm) | ≥1.0 x 1014 | ASTM D257 |
| Temperature Range (℃)) | -55~200 | ****** |
| Flame Rating | V-0 | UL94 (E331100) |
Standard Sheet Size:23" x 60"(584mm x 1524mm)
Z-Foam® Series can be die-cut into different shapes provided.
For More different thickness,please contact us.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
