| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | TIF100-60-01U |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Tấm dẫn nhiệt siêu mềm dựa trên silicone hiệu suất cao cho các sản phẩm điện tử Lưu trữ năng lượng c | độ dày: | 0,25-5,0mmT(0,010"~0,20") |
|---|---|---|---|
| Ứng dụng: | Sản phẩm điện tử, Lưu trữ năng lượng, Công nghiệp | Trọng lượng riêng: | 3,2g/cc |
| Điện áp đánh thủng điện môi: | >5500VAC | Màu sắc: | Đen |
| Từ khóa: | Tấm dẫn nhiệt | Nguyên vật liệu: | Chất đàn hồi silicon chứa đầy gốm |
| Độ dẫn nhiệt: | 6.0W/m-K |

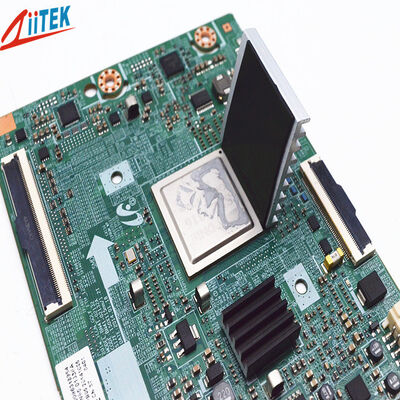

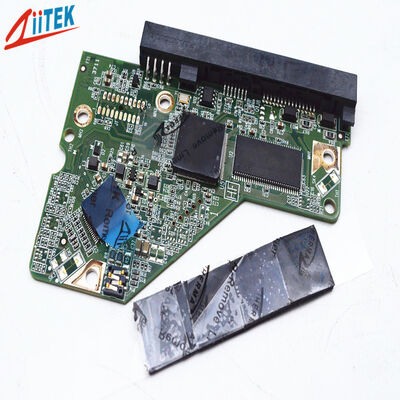

High Performance Silicone-Based Ultra-Soft Thermally Conductive Sheet For Electronic Products Energy Storage Industrial
Company profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Products description
The TIF®100-60-01U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> CPU
> Display card
> Mainboard/mother board
> AI Processors AI Servers
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
| Typical Properties of TIF®100-60-01U Series | |||
| Property | Value | Test method | |
| Color | Black | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.0 W/m-K | ASTM D5470 | |
| 6.0 W/m-K | ISO22007 | ||
Standard Thickness: 0.010" (0.25 mm)~0.200 (5.00 mm) with increments of 0.010 (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
TheTIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
