| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | TIF700NS |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Ứng suất nén thấp Vật liệu GAP PAD nhiệt mềm 6,5W cho bộ xử lý AI Máy chủ AI | Màu sắc: | xám |
|---|---|---|---|
| độ cứng: | 65/45 Bờ 00 | Độ dẫn nhiệt (w/mk): | 6,5 |
| Mật độ (g/cm³): | 3.4 | Từ khóa: | đệm khe hở nhiệt |
| Phạm vi độ dày: | 0,010"~0,200"(0,25mm~5,0mm) | Ứng dụng: | Bộ xử lý AI Máy chủ AI |

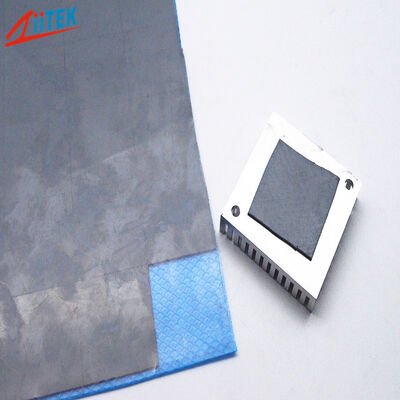

Low Compression Stress 6.5W Soft Thermal GAP PAD Materials For AI Processors AI Servers
Company Profile
The TIF®700NS Series a well-balanced, general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
Features
> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Applications
Electronic Components – 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robotics, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIF®700NS Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.030 | 0.040~0.200 | ASTM D374 |
| (0.25~0.75) | (1.0~5.00) | ||
| Hardness | 60 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.5 W/m-K | ASTM D5470 | |
| 6.5 W/m-K | ISO22007 | ||
Product Specification
Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
