| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL and RoHs |
| Số mô hình: | TIF100-30-06S |
| Tài liệu: | TIF100-30-06S_Data Sheet.pdf |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24 * 13 * 12cm |
| Thời gian giao hàng: | 3-8 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 100000 chiếc / tháng |
| Tên sản phẩm: | Tấm tản nhiệt silicon dẫn nhiệt 3.0W/mK với độ mềm và khả năng lấp đầy tốt cho bộ xử lý AI và làm má | dẫn nhiệt: | 3.0w/mk |
|---|---|---|---|
| độ cứng: | 65/45 Bờ 00 | vật mẫu: | Mẫu miễn phí |
| Màu sắc: | trắng | độ dày: | 0,010"~0,200"/(0,25~5,0mm) |
| Tỉ trọng: | 3.0g/cm³ | Từ khóa: | Tấm nhiệt silicon |
| Sự thi công: | Chất đàn hồi silicon chứa đầy gốm | Ứng dụng: | Bộ xử lý AI và làm mát điện tử |
Products description

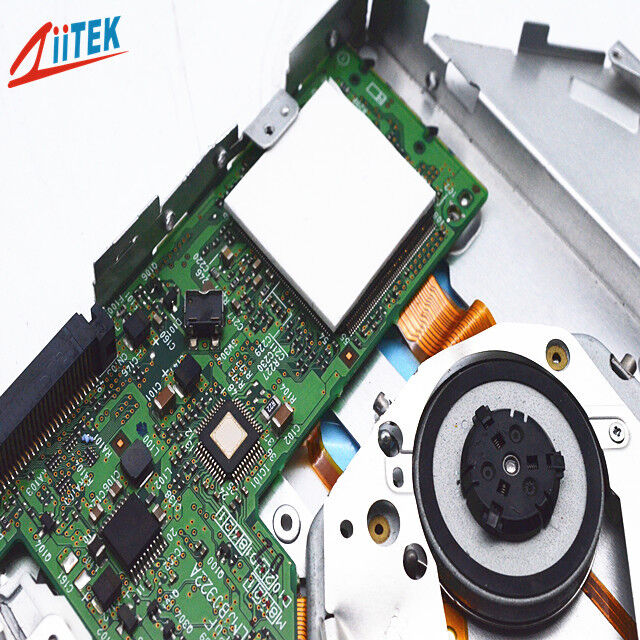

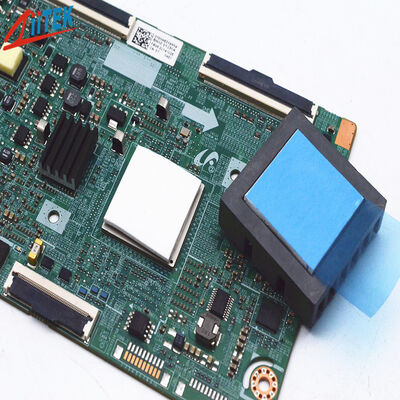

The TIF®100-30-06S Series is awell-balanced,general-purpose thermal pad.It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent suface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
| Typical Properties of TIF®100-30-06S Series | |||
| Property | Value | Test method | |
| Color | White | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness (Shroe 00) | 65 | 45 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant@ 1MHz | 5.2 | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 | |
| 3.0 W/m-K | ISO22007 | ||
Product Specifications
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
