| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | TIF100-18-11U |
| Tài liệu: | TIF100-18-11U_Data Sheet .pdf |
| Số lượng đặt hàng tối thiểu: | 1000 chiếc |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | RoHS Tuân thủ độ dày và hình dạng tùy chỉnh Miếng đệm nhiệt cực mềm cho bảng quang điện mặt trời | Từ khóa: | Miếng đệm nhiệt |
|---|---|---|---|
| Vật mẫu: | Mẫu miễn phí | Xếp hạng lửa: | 94 V0 |
| Màu sắc: | Màu xám đậm | Độ dẫn nhiệt: | 1,8W/mK |
| Hằng số điện môi @ 1 MHz: | 4.5 | Điện áp đánh thủng（V/mm)）: | ≥5500 |
| Phạm vi độ dày: | 0,010"~0,200"(0,25mm~5,0mm) | Ứng dụng: | Bảng quang điện mặt trời |

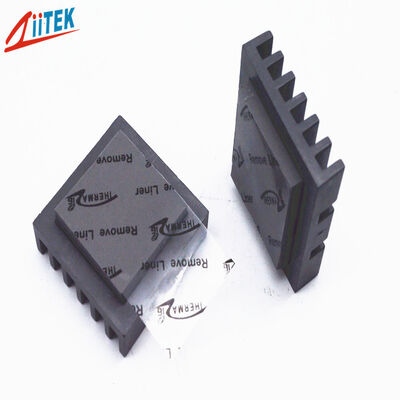

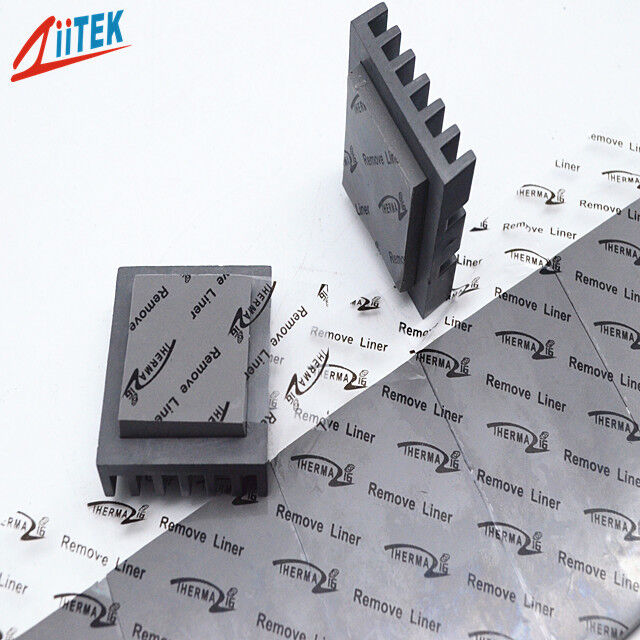

TIF®100-18-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
| Property | Value | Test Method |
|---|---|---|
| Color | Dark gray | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | - |
| Density (g/cm³) | 2.5 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 27 | ASTM 2240 |
| Continuous Use Temp | -40 to 200℃ | - |
| Breakdown Voltage (V/mm) | ≥ 5500 | ASTM D149 |
| Dielectric Constant@1MHz | 4.5 | ASTM D150 |
| Volume Resistivity(Ohm-meter) | ＞1.0×10¹² | ASTM D257 |
| Thermal Conductivity (W/m-K) | 1.8 | ASTM D5470 / ISO22007 |
| Fire Rating | V-0 | UL 94 (E331100) |
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm ×406 mm)
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging Details:
Lead Time: Quantity: 5000 pieces - To be negotiated
Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste, thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel, silicone foam, silicone-free thermal pads etc. We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.
