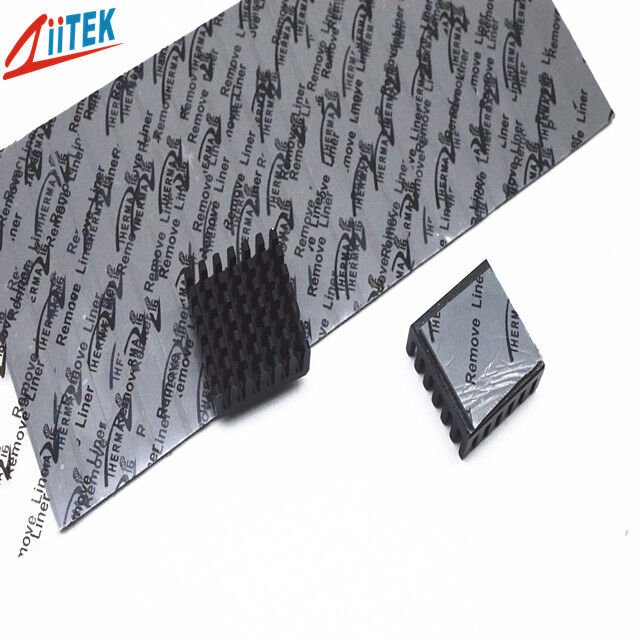

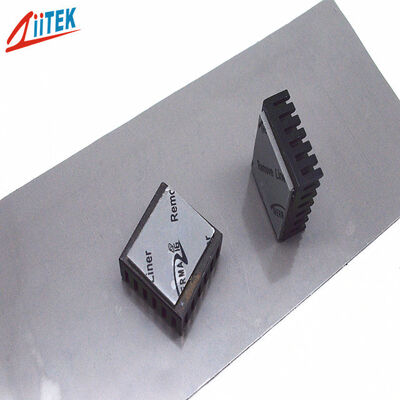

Name: Ultra-Soft 10W/mK Thermal Pad with Ceramic Filled Silicone for High-End Chip Cooling
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100 10020-11
Price: 4.10 USD
Availability: InStock

Nhà Sản phẩm đệm nhiệt silicon

Ultra-Soft 10W/mK Thermal Pad with Ceramic Filled Silicone for High-End Chip Cooling

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	Ziitek
Chứng nhận:	UL and RoHs
Số mô hình:	TIF100 10020-11
Tài liệu:	TIF100 10020-11_Data Sheet.pdf

Thanh toán:

Số lượng đặt hàng tối thiểu:	1000 chiếc
Giá bán:	0.1-10 USD/PCS
chi tiết đóng gói:	Thùng 24 * 13 * 12cm
Thời gian giao hàng:	3-8 ngày làm việc
Điều khoản thanh toán:	T/T
Khả năng cung cấp:	100000 chiếc / tháng

Tiếp xúc

Chi tiết sản phẩm

Tên sản phẩm:	Tấm tản nhiệt siêu hiệu suất 10W/mK lấp đầy khoảng trống một cách hiệu quả cho chip cao cấp	dẫn nhiệt:	10,0w/mk
độ cứng:	20 bờ 00	vật mẫu:	Mẫu miễn phí
Màu sắc:	Màu xám đậm	độ dày:	0,012"~0,200"/(0,30~5,0mm)
Tỉ trọng:	3.3g/cm³	Từ khóa:	Tấm nhiệt silicon
Sự thi công:	Chất đàn hồi silicon chứa đầy gốm	Ứng dụng:	Chip cao cấp

Ultra Performance 10W/mK Thermal Pad Effectively Fill Gaps Pad For High-end Chip

Product Description

The TIF®100 10020-11 Series is an ultra-soft thermal interface material specifically designed to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-like softness, achieving a low-stress perfect fit. It effectively addresses issues in high-precision assemblies, including large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features

Excellent thermal conductivity 10.0W/mK
Super soft and highly compliant
Self-adhesive without the need for additional surface adhesives
High insulation performance

Applications

AI Servers
Semiconductor Packaging
Low-Altitude Aircraft
Optical Communication Products
5G Base Stations

Typical Properties of TIF®100 10020-11 Series

Property	Value	Test Method
Color	Dark White	Visual
Construction & Composition	Ceramic filled silicone elastomer	******
Density (g/cm³)	3.3	ASTM D792
Thickness Range (inch/mm)	0.012~0.020 \| 0.030~0.200 0.30~0.50 \| 0.75~5.0	ASTM D374
Hardness (Shroe 00)	20 \| 20	ASTM 2240
Recommended Operating Temperature	-40 to 200℃	******
Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @ 1MHz	6.4	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-meter	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal Conductivity	10.0W/m-K 10.0 W/m-K	ASTM D5470 ISO22007

Product Specifications

Standard Thickness: 0.012" (0.30 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"x16" (406 mm x 406 mm)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Packaging Details & Lead Time

Packaging of Thermal Pad:

With PET film or foam for protection
Use paper card to separate each layer
Export carton inside and outside
Meet with customers' requirement - customized

Lead Time:
Quantity (Pieces): 5000
Est. Time (days): To be negotiated

Company Profile

Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste, thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel, silicone foam, silicone-free thermal pads etc. We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.

Ziitek Culture

Quality: Do it right the first time, total quality control
Effectiveness: Work precisely and thoroughly for effectiveness
Service: Quick response, on time delivery and excellent service
Team Work: Complete teamwork, including sales team, marketing team, engineering team, R&D team, manufacturing team, logistics team. All is for supporting and servicing a satisfying service for customers.
