| Nguồn gốc: | TRUNG QUỐC |
| Hàng hiệu: | Ziitek |
| Chứng nhận: | UL & RoHS |
| Số mô hình: | TIF100-11S |
| Tài liệu: | TIF100-11S_Data Sheet.pdf |
| Số lượng đặt hàng tối thiểu: | 1000 CÁI |
|---|---|
| Giá bán: | 0.1-10 USD/PCS |
| chi tiết đóng gói: | Thùng 24*13*12cm |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1000000 PC/tháng |
| Tên sản phẩm: | Tấm cách nhiệt tản nhiệt Tấm cách nhiệt silicon tuân thủ RoHS với độ dẫn nhiệt 1,5W/mK cho các ứng d | Từ khóa: | Tấm nhiệt |
|---|---|---|---|
| Vật mẫu: | Mẫu miễn phí | Xếp hạng lửa: | 94 V0 |
| Màu sắc: | Màu xám đậm | Độ dẫn nhiệt: | 1,5W/mK |
| Hằng số điện môi @ 1 MHz: | 4.5 | Điện áp đánh thủng（V/mm)）: | ≥5500 |
| Phạm vi độ dày: | 0,010"~0,200"(0,25mm~5,0mm) | Ứng dụng: | Ứng dụng làm mát |

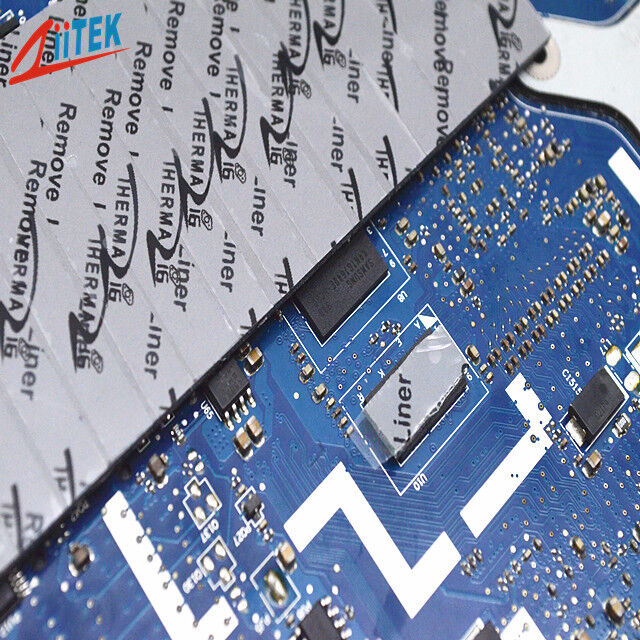

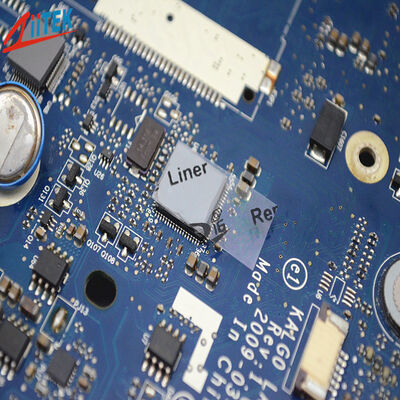

Heat Sink Thermal Pad RoHS Compliant Silicone Insulation Pad With 1.5W/mK Thermal Conductivity For Cooling Applications
TIF®100-11S Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
Key Features
Applications
Technical Specifications
Property
Value
Test Method
Color
Dark Gray
Visual
Construction & Composition
Ceramic filled silicone elastomer
-
Density (g/cm³)
2.3
ASTM D792
Thickness Range (inch/mm)
0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00ASTM D374
Hardness (Shore 00)
65 | 45
ASTM 2240
Continuous Use Temp
-40 to 200℃
-
Breakdown Voltage (V/mm)
≥ 5500
ASTM D149
Dielectric Constant@1MHz
4.5
ASTM D150
Volume Resistivity(Ohm-meter)
＞1.0×10¹²
ASTM D257
Thermal Conductivity (W/m-K)
1.5
ASTM D5470 / ISO22007
Fire Rating
V-0
UL 94 (E331100)
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm ×406 mm)Component Codes
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging & Lead Time
Packaging Details:
• PET film or foam for protection
• Paper card to separate each layer
• Export carton inside and outside
• Customized to meet customer requirementsLead Time: Quantity: 5000 pieces - To be negotiated
Frequently Asked Questions
A: We are manufacturer in China.
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
A: Most thermal gap pad surfaces have double side natural inherent tack. Non-stick surface can also be treated according to customer's requirements.
A: Click the "Send messages" button, fill out the form with your questions and purchase requests, and we will reply as soon as possible via email or online.About Ziitek
Ziitek is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective thermal management solutions. Our facilities include advanced production equipment, full test equipment, and fully automatic coating production lines supporting production of high-performance thermal silicone pads, thermal graphite sheets/films, thermal double-sided tape, thermal insulation pads, thermal ceramic pads, phase change materials, and thermal grease. All products are UL94 V-0, SGS and ROHS compliant.
